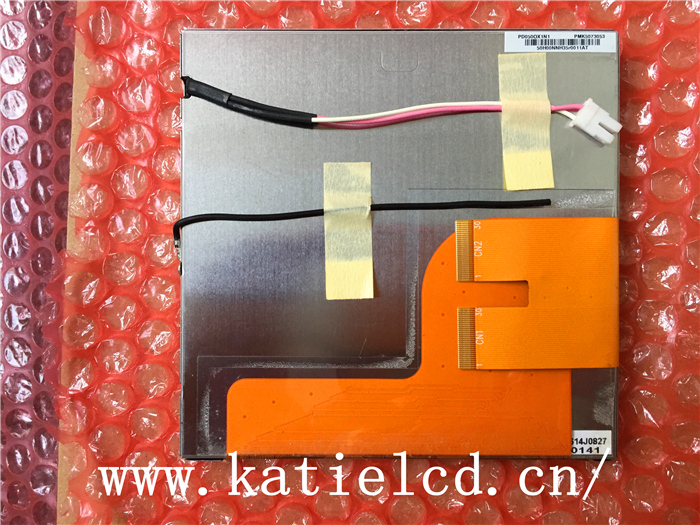

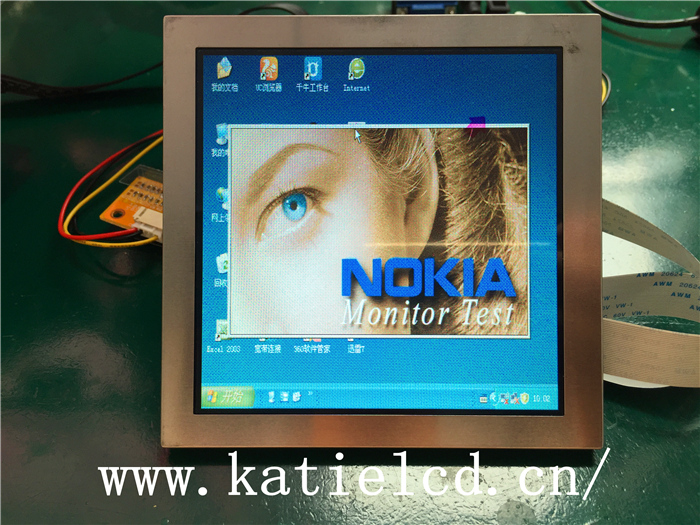

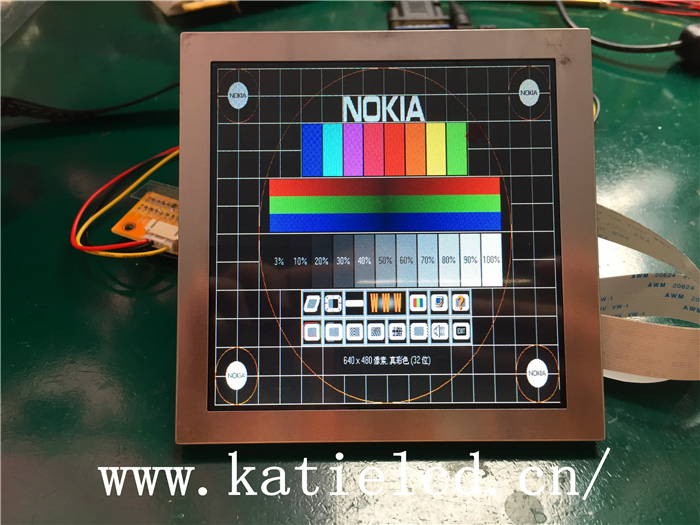

Main parameters of Yuantai LCD module PD050OX1:
Manufacturer: Yuan Tai (PVI) Model: PD050OX1
Diagonal size: 5.0 inch type: a-Si TFT-LCD, LCD module
Resolution: 480(RGB)×480 VGA pixel arrangement: RGB vertical bar
Display area: 90(horizontal)×90 (vertical) mm Appearance size: 115.5 (horizontal) × 110 (vertical) mm
Opening area: 93.2 (horizontal) × 93.2(vertical) mm surface treatment: matte
Display brightness: 450 cd/m² (Typ.) Contrast: 400:1 (Typ.) (Transmission)
Recommended viewing angle: 6 o'clock Response time: 15/25 (Typ.)(Tr/Td) ms
Viewing angle: 60/60/40/50 (Typ.) (CR≥10) Display mode: TN, normally white display, transmissive
Support color: 262K light source type: CCFL[1 pcs], 40K hours, no driver
Touch technology: No touch Application products: Industrial and subway gate display
Voltage supply: 3.3V (Typ.)(VCC) Storage temperature: -30 ~ 80 °C
Packing feature: 30 pcs/carton weight: 340±10g/pcs
Packing box size: 530×295×230 mm (L×W×H)
