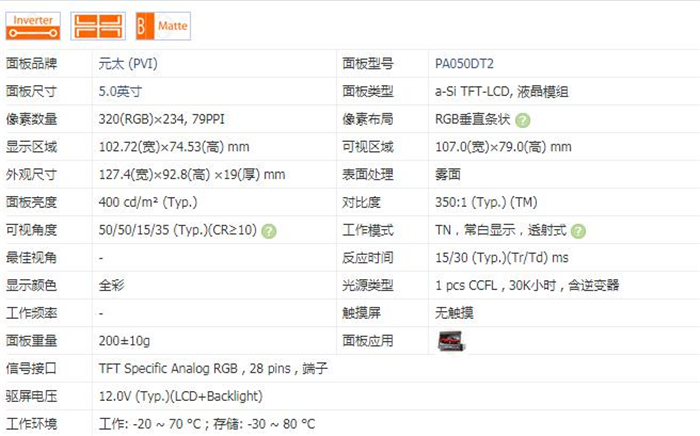

Main parameters of PVI LCD module PA050DT2:

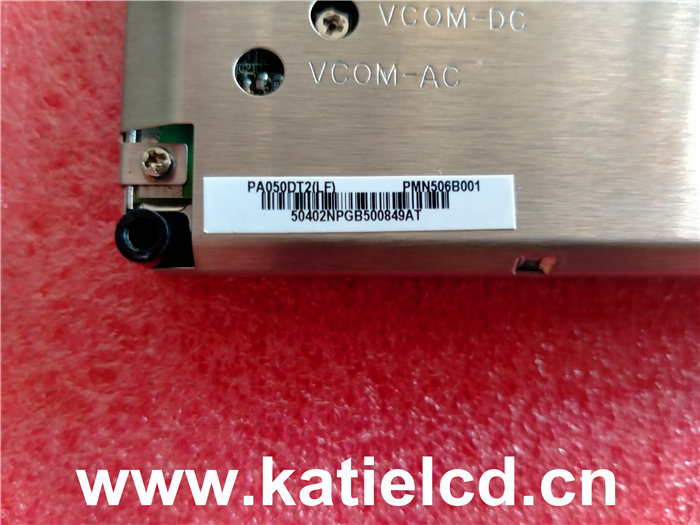

Manufacturer: Yuan Tai (PVI) Model: PA050DT2

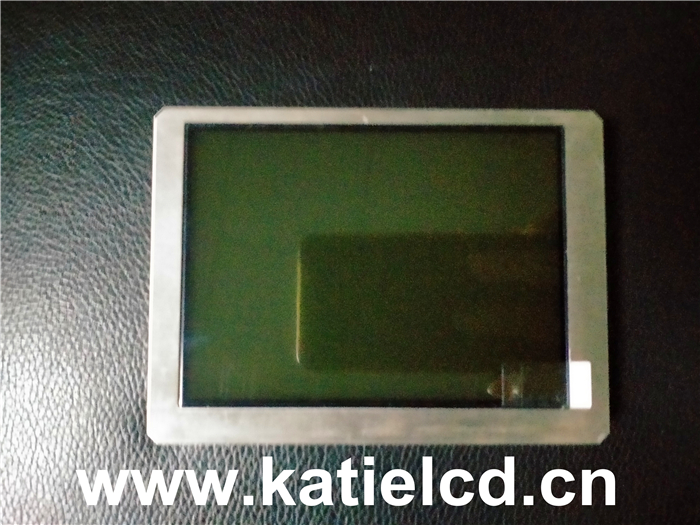

Diagonal size: 5.0inch type: a-Si TFT-LCD, LCD module
Resolution: 320(RGB)×234, 79PPI pixel arrangement: RGB vertical bar
Display area: 102.72(horizontal)×74.53 (vertical) mm Appearance size: 127.4 (horizontal) × 92.8 (vertical) mm
Opening area: 107.0 (horizontal) × 79.0 (vertical) mm surface treatment: matte
Display brightness: 400 cd/m² (Typ.) Contrast: 350:1 (Typ.) (Transmission)
Recommended viewing angle: 6 o'clock Response time: 15/30 (Typ.)(Tr/Td) ms
Viewing angle: 50/50/15/35 (Typ.) (CR≥10) Display mode: TN, normally white display, transmissive
Support color: Full color light source type: 1pcs CCFL, 30K hours, including inverter
Touch technology: No touch Application products: Industrial and subway gate display
Voltage supply: 12.0V(Typ.)(LCD+Backlight) Interface type: 28pins, terminals
Operating temperature: -20 ~ 70 °C Storage temperature: -30 ~ 80 °C
Packing feature:10 pcs/carton weight: 200±10g
Packing box size: 355×300×142 mm (L×W×H)
