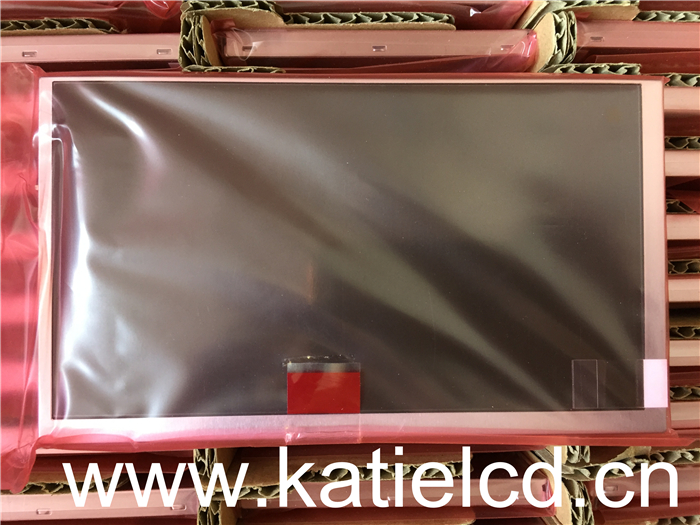

Manufacturer: Yuan Tai (PVI) Model:PW065XS1
Diagonal size: 6.5 inch type: a-Si TFT-LCD, LCD module
Resolution:400(RGB)×234 71PPI pixel arrangement: RGB vertical bar
Display area: 143.4(horizontal)×79.326 (vertical) mm Appearance size:155.6(horizontal)×89.6(vertical)x7.9(thick) mm
Opening area: 146.2 (horizontal) ×82.18(vertical) mm surface treatment: matte
Display brightness:420 cd/m² (Typ.) Contrast: 350:1 (Typ.) (Transmission)
Recommended viewing angle: 6 o'clock Response time: 15/25 (Typ.)(Tr/Td) ms
Viewing angle: 60/60/40/55 (Typ.) (CR≥10) Display mode: TN, normally white display, transmissive
Support color: panchromatic light source type:1 pcs CCFL, 30K hours, no driver
Touch technology: No touch Application products: photo frame, video doorbell, car display
Voltage supply: 3.3V (Typ.)(VCC) Interface type:30 pins TFT Specific Analog RGB , FPC
Operating temperature: -30 ~ 85 °C Storage temperature: -40 ~ 85 °C
Packing feature: 40 pcs/carton weight:166±10g
Packing box size: 530×295×230 mm (L×W×H)
