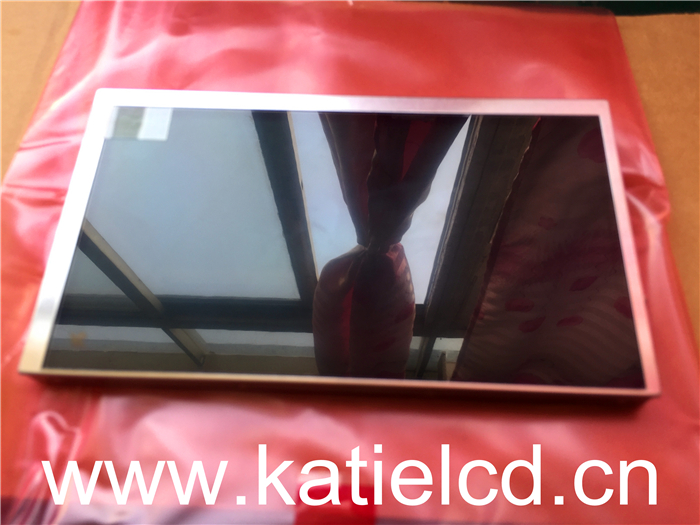

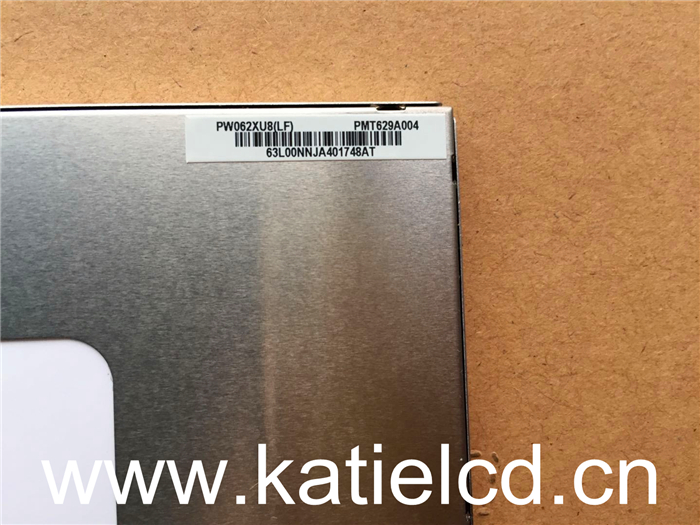

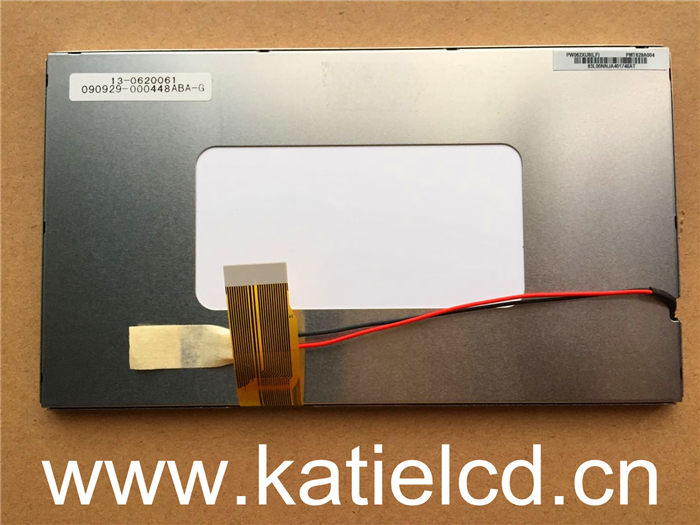

PW062XU8

PW062XU8 PW062XU8 PW062XU8 PW062XU8
Product name : PW062XU8
Item :
Price : 120RMB
Details :
Manufacturer: Yuan Tai (PVI)                                                Model:PW062XU8
Diagonal size: 6.2 inch                                                          type: a-Si TFT-LCD, LCD module
Resolution:480(RGB)×234   71PPI                             pixel arrangement: RGB vertical bar
Display area: 137.52(horizontal)×77.22 (vertical) mm          Appearance size:155.2(horizontal)×88.2(vertical)
Opening area: 140.7(horizontal)×80.4(vertical)                    surface treatment: matte
Display brightness:400 cd/m² (Typ.)                                     Contrast: 400:1 (Typ.) (Transmission)
Recommended viewing angle: 6 o'clock                               Response time: 15/25 (Typ.)(Tr/Td) ms
Viewing angle:75/75/50/60 (Typ.) (CR≥10)                          Display mode: TN, normally white display, transmissive
Support color: panchromatic                                                 light source type:WLED [3S8P], 30K hours, no driver
Touch technology: No touch                                                  Application products: photo frame, video doorbell, car display
Voltage supply: 3.3V (Typ.)(VCC)                                         Interface type:26 pins   TFT Specific Analog RGB , FPC
Operating temperature: -30 ~ 80 °C                                     Storage temperature: -30 ~ 80 °C
Packing feature: 40 pcs/carton                                              weight:134±10g
Packing box size: 530×295×230 ​​mm (L×W×H)
