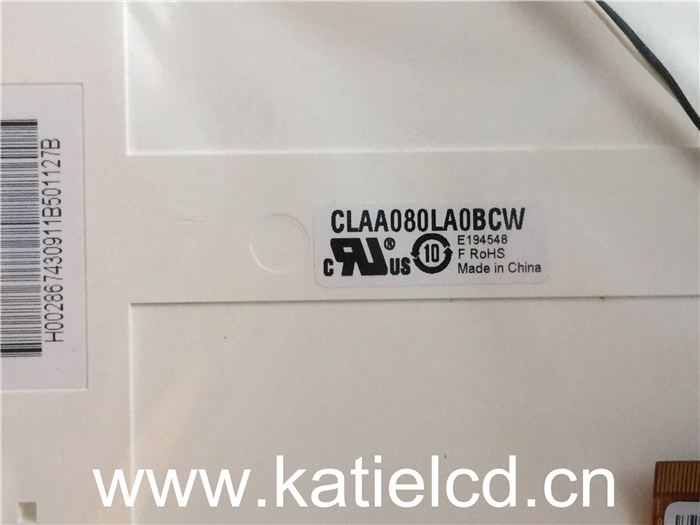

Manufacturer:(CPT) Model Number:CLAA0080LA0BCW
Diagonal size:8.0inch Type:a-Si TFT-LCD,LCD module
Resolution:800(RGB)×480VGA,139PPI Pixel arrangement:RGB vertical strip
Display area:172.8(W)×103.68(H) mm Appearance size:192.8(W)×116.9(H) ×6.7(D) mm
Opening area:176.0(W)×106.88(H) mm Surface treatment: matte, Hard coating (3H)
Display brightness:250 cd/m²(Typ.) Contrast:500:1 (Typ.) (transmission)
Recommended viewing angle:6 o'clock Response time:30 (Typ.)(Tr+Td) ms
Viewing angle:70/70/50/70(Typ.)(CR≥10) Display mode:TN,normally white display,transmissive
Support color:262K,505% NTSC Light source type:3S6P WLED, 10K hours, no driver
Weight:170g(Typ.) Application products:industrial and medical equipment
Frame rate:60Hz Touch technology:no touch
Interface type:TTL (1 ch, 6/8-bit) , 60 pins , FPC voltage:3.3/9.6/18/-6V (Typ.)
Working temperature:-20 ~ 70 °C Storage temperature: -30 ~ 80 °C
